| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-CL2800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiations |
| Packaging Details: | Plywood+Vacuum package |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/year |
| Cleaning Method: | Upper And Lower Mobile High-pressure Spraying | Monitoring Range Of Resistivity Meter: | 0~18MΩ |
|---|---|---|---|
| Drying Method: | High-speed Hot Air Drying | Equipment Size: | L1500×W1400×H2010 (mm) |
| Filtering Method: | Liquid Circulation Filtration (0.45μm) | Cleaning Box Capacity: | 80L |
| Working Mode: | One Click Fully Automatic Cleaning | Spray Pressure: | 30PSI~90PSI (adjustable) |
| Cleaning Temperature: | Environmental Temperature~75 ℃ | DI Water Supply: | Floating: 5-15L/min Inch ↓ 88066;0.2Mpa |
| Drying Temperature: | Environmental Temperature~100 ℃ | Air Supply: | 0.45Mpa ～0.7Mpa |
| Cleaning Objects: | Steel Mesh, Wire Mesh, Misprint Board, Etc | Air Outlet Size: | Φ 102mm (discontinuous Exhaust) |
| Clean Time: | 0-99 Minutes Adjustable | Exhaust Air Volume: | 5m³/Min |
| Rinsing Time: | 0-99 Minutes Adjustable | Noise: | Less Than 70 Decibels |
| Drying Time: | 0-99 Minutes Adjustable | Machine Net Weight: | About 550KG |
| Add And Discharge Liquid: | Automatic Liquid Addition And Discharge | Rated Power: | Three Phase Five Wire Type AC380V 50HZ 35KW |
| Highlight: | 0.45Mpa Stencil Cleaner Machine,0.7Mpa Stencil Cleaner Machine,Anti Corrosion Stencil Washing Equipment |
||
Characteristic:
| Parameter | Description |
|---|---|
| Weight | 550KG |
| Drying temperature | Ring Temperature ~100°C |
| Cleaning time | 0-99 Minutes Adjustable |
| Operating mode | Fully Automatic Cleaning At The Touch Of A Button |
| Wash tank capacity | 80L |
| Object of cleaning | Stencils, Screens, Misprinted Boards, Etc. |
| Equipment size | L1500×W1400×H2010 (mm) |
| Drying time | 0-99 Minutes Adjustable |
| Filtration | Liquid Circulation Filtration (0.45μm) |
| Resistivity meter monitoring range | 0~18MΩ |
| Cleaning medium | Water-based Stencil Cleaner |
| Air vent size | Φ102mm (discontinuous exhaust) |
| Exhaust volume | 5m³/Min |
| Rating | Three-phase five-wire AC380V 50HZ 35KW |

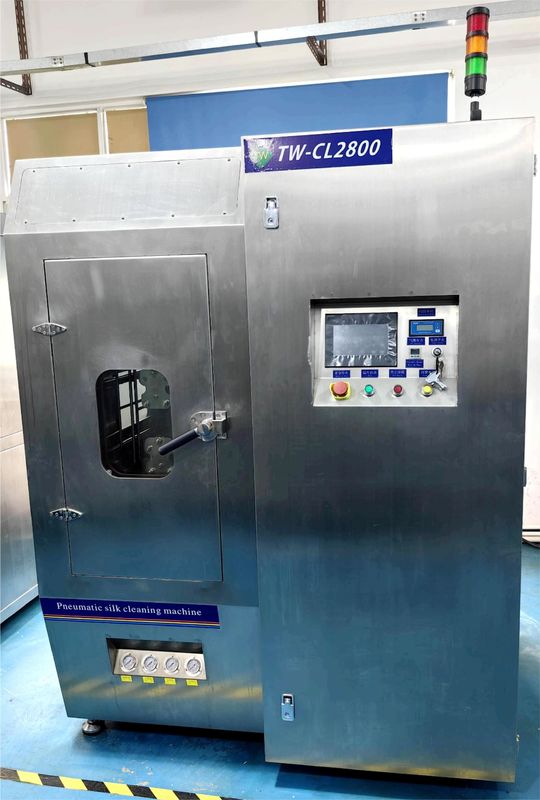

The TW-CL2800 screen cleaner is suitable for use in various industries, including military, instrumentation, communication, industrial, and semiconductor industries. It is specifically designed for the daily cleaning of highly reliable products in these sectors.
Automatic Screen Cleaning Machine offers technical support and service to customers 24/7. Our experienced team of professionals is available to answer any questions or concerns about the product. We also provide a range of services such as installation, maintenance, and troubleshooting. Additionally, our team can help to optimize the product for optimal performance and reliability. If you have any questions, please do not hesitate to contact us.
Q1: What is the Brand Name of Automatic Screen Cleaning Machine?
A1: The Brand Name of Automatic Screen Cleaning Machine is TongWei.
Q2: What is the Model Number of Automatic Screen Cleaning Machine?
A2: The Model Number of Automatic Screen Cleaning Machine is TW-CL1800.
Q3: Where is the Place of Origin of Automatic Screen Cleaning Machine?
A3: The Place of Origin of Automatic Screen Cleaning Machine is Shenzhen, China.
Q4: What are the features of Automatic Screen Cleaning Machine?
A4: The features of Automatic Screen Cleaning Machine include: Quick and effective cleaning, Low noise, Low power consumption, Easy to use and operate, etc.
Q5: What kind of cleaning liquid can be used in Automatic Screen Cleaning Machine?
A5: The cleaning liquid used in Automatic Screen Cleaning Machine should be non-toxic and non-irritating liquid.
