Stainless Steel Automatic Screen Cleaning Machine Antiwear Stable

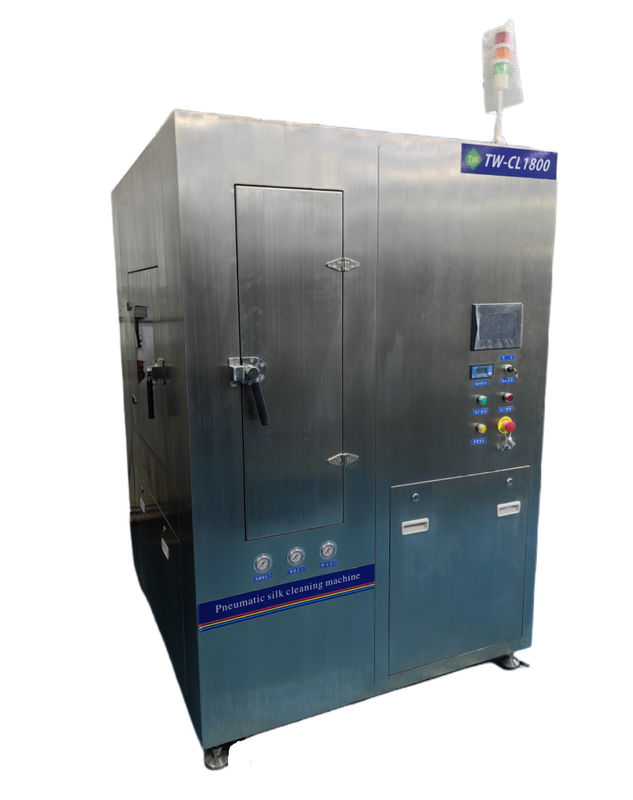

 Stainless Steel Automatic Screen Cleaner For SMT Screen & PCB/PCBA TW-CL1800

Product Description:

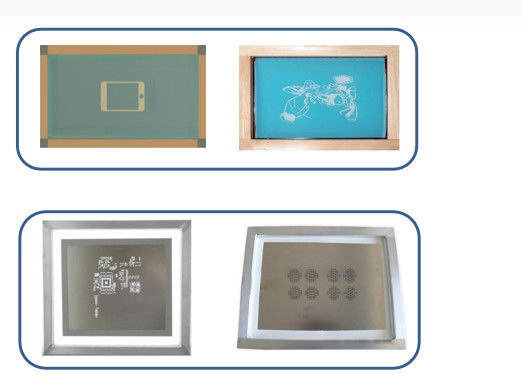

 The fully automatic water-based screen cleaning machine TW-CL1800 is mainly designed for cleaning SMT screens, PCB/PCBA boards, and misprinted boards in the electronics industry using water-based cleaning liquids. Using the most advanced cleaning process in the industry, achieving 100% cleanliness and environmental protection. The machine consists of a cleaning system, a rinsing system, a drying system, and a filtration system. The machine uses electricity and compressed air as energy sources to manually place the mesh plate in the cleaning room. After setting the cleaning, rinsing, drying, and other related parameters from the touch screen, press the start button, and the mesh plate will be automatically cleaned, rinsed, and dried. After the set cleaning process is completed, it will automatically stop running and reset to achieve the next workflow. This machine is very convenient for operators to operate, and the chief mate improves production efficiency and quality. It belongs to a new type of high-performance fully automatic cleaning equipment. The equipment uses water-based liquid cleaning agents and DI water for rinsing, with no safety hazards and no harm to personnel.

Characteristic:

All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in compliance with environmental requirements and standards;

Complete the entire cleaning process of cleaning, rinsing, and drying in one cleaning room, with a small volume and compact structure;

High density equal pressure bilateral symmetric complementary cleaning nozzle: strong cleaning force without damaging the tension of the steel mesh;

Four stage filtration system and low exhaust duct design: solvent recycling, low liquid consumption;

The cleaning room is equipped with a visual window, making the cleaning process clear at a glance

Used to monitor the cleaning effect, the resistivity can be set, and the resistivity control range is 0-18M Ω

Adopting a stable and reliable imported brand color touch screen, targeting: solvent temperature, cleaning time, rinsing frequency/time, rinsing temperature, drying time, drying temperature, conductivity monitoring parameters, etc;

Working principle:

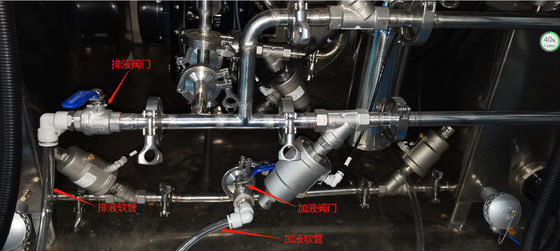

In the manual-pump booster-spray cleaning-centralized 1mm filter recovery after cleaning 0.45um filtering and recovering-pump booster spray rinse- online 0.45um triple filter-wind drying,heating and drying-manual extraction

Technical Parameters:

Applications:

The TW-CL1800 screen cleaner is suitable for use in various industries, including military, instrumentation, communication, industrial, and semiconductor industries. It is specifically designed for the daily cleaning of highly reliable products in these sectors.

Support and Services:

Automatic Screen Cleaning Machine offers technical support and service to customers 24/7. Our experienced team of professionals is available to answer any questions or concerns about the product. We also provide a range of services such as installation, maintenance, and troubleshooting. Additionally, our team can help to optimize the product for optimal performance and reliability. If you have any questions, please do not hesitate to contact us.

FAQ:

1. What is the power supply required for the equipment?
   The power supply required is Three Phase Five Wire AC380V 50HZ 35KW.

2. What are the dimensions of the equipment?
   The equipment size is 1300mm(L)ｘ1400mm(W)ｘ1950mm(H).

3. Is the equipment environmentally friendly?
   Yes, the equipment is environmentally friendly, with low energy consumption, low operating noise, and no pollution. It also complies with the ROHS and halogen-free requirements of the electronics industry.

4. What are the main features of the equipment?
   The main features of the equipment include fully automatic cleaning, rinsing, and drying processes, a real-time circulating filtration system for cleaning and rinsing liquids, low energy consumption, low operating noise, no pollution, and environmentally friendly operation. The equipment also incorporates electronic alarm monitoring meters for all air pressures, an anti-leakage tray, a leakage sensing device, and emergency stop switches.

5. What industries can the product be used in?
   The product can be used for the daily cleaning of highly reliable products in the military, instrumentation, communication, industrial, and semiconductor industries.
