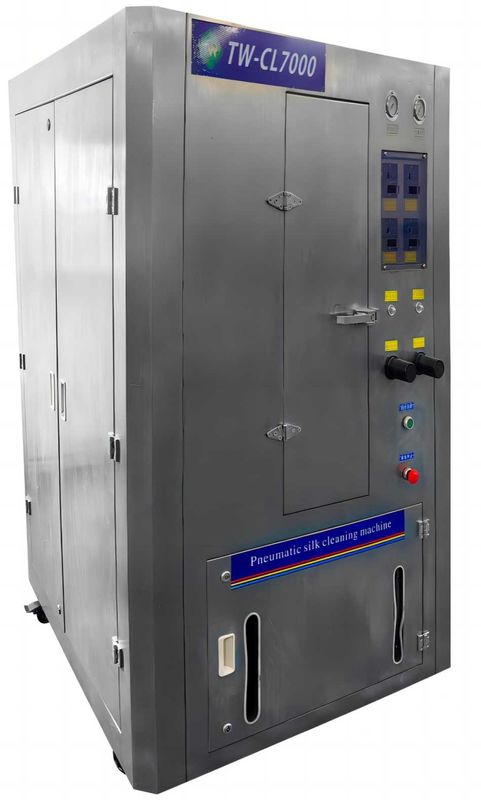

Multiscene Stencil Cleaning Machine System Stable With Rotary Spray

Multiscene Stencil Cleaning Machine System Stable With Rotary Spray

Multiscene Stencil Cleaning Machine System Stable With Rotary Spray
video
Multiscene Stencil Cleaning Machine System Stable With Rotary Spray
Product Details:
Place of Origin: Shenzhen, China
Brand Name: TongWei
Certification: CE
Model Number: TW-CL7000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Conference
Packaging Details: Vacuum +plywood case package
Delivery Time: 30-45 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets/year
Contact Now
Detailed Product Description
Material: Stainless Steel Overall Dimensions: 1450mm(L)*1000mm(W)*2030mm(H)
Applicable Screen Size: 1200mm(L)*1200mm(W)*400mm(H) Tank Capacity: 80 Liters * 2 PCS
Optimal Dosage For Liquid Addition: 65 Liters * 2 PCS Cleaning Method: High Pressure Water Jet
Exhaust Port Size: φ123mm(W)*φ30mm(H) Weight: 400KG
Compressed Air Requirements: Pressure:4.5kg/cm²-7kg/cm² Gas Consumption:800-1000L/Mih
Highlight:

Multiscene Stencil Cleaning Machine

,

Stencil Cleaning Machine Stable

,

Rotary Spray Stencil Cleaning System

Rotary spray cleaning capacity, good cleaning effect of the screen cleaning machine TW-CL7000

Product Description:

The TW-CL7000 Screen printing cleaning machine is designed for cleaning various types of screen plates, including large wire mesh, steel mesh, copper mesh, rubber mesh, and microporous mesh. It utilizes pure compressed air to drive a diaphragm pump, allowing for the recycling of the cleaning solution inside the machine, which achieves zero discharge of the cleaning agent. This machine effectively cleans and dries the screen, providing stable, safe, and efficient cleaning results.



Features:

  1. Environmentally friendly: Complies with environmental requirements and standards.
  • Efficient and time-saving: Provides stable and efficient cleaning results, saving time and effort.
  • Versatile application: Suitable for cleaning various types of mesh plates, including wire mesh, adhesive mesh, microporous mesh, and crystal disc.
  • High-quality construction: The machine integrates global quality devices, ensuring excellent performance and long service life.

Technical Parameters:

Parameter Value
Noise Level ≤80dB
Cleaning Efficiency 99%
Weight 400kg
Operating Mode Automatic
Cleaning Method High Pressure Water Jet
Applicable stencil size Maximum 1200mm(L) × 1200mm(W) × 40mm(H) Special size on request.
Cleaning time 2-5 minutes
Material Stainless Steel
Size

1470(L) ×1270mm(W) ×2150mm(H
Exhaust port size

Φ100(W)×30mm(H)


Applications:

The TW-CL7000 Screen printing cleaning machine is widely used in industries that require clean and precise screen printing, such as electronics manufacturing, PCB assembly, and industrial printing. It is suitable for cleaning screen plates used in wire mesh production, adhesive mesh production, microporous mesh production, and crystal disc production.

Working Principle:

   This machine uses compressed air as the power source, which is a new type of high-performance pneumatic cleaning equipment. Put the stencil into the cleaning room manually, adjust the cleaning and drying time, press the start switch, the stencil will be automatically cleaned, rinsed and dried. When the set time is reached, it will stop running automatically. When the door is opened to take out the workpiece, the time timer will be reset to realize the next workflow, which is convenient for the operator to clean the stencil and greatly improve the production efficiency. Secondly, the liquid used for cleaning can be recycled in this machine, which greatly reduces the consumption of liquid, lowers the operation cost, and shortens the operation time, and the operators do not need to contact the liquid directly to avoid harming the human body. The power source used in this machine is compressed air, without the input of electricity, which greatly improves its safety performance and does not require any liquid. All control components are using brand-name products, so that the machine runs stably and has a long service life, which reduces the after-sales service after the warranty period. The exhaust gas produced by drying is discharged through the special structure of the exhaust device inside the machine, which reduces the volatilization of the liquid, reduces the consumption of liquid and compressed air, and reduces the odor of the liquid.



FAQ:



  1. What are the dimensions of the machine?

    • Overall dimensions: 1450mm (L) x 1000mm (W) x 2030mm (H)

  2. What is the maximum screen size that can be accommodated?

    • Applicable screen size: 1200mm (L) x 1200mm (W) x 400mm (H)

  3. How much liquid can the cleaning tanks hold?

    • Tank capacity: 80 liters x 2 PCS

  4. What is the optimal dosage for liquid addition?

    • Optimal dosage for liquid addition: 65 liters x 2 PCS

  5. What is the filtration method used?

    • The machine features an 8-stage precision filtration system for cleaning area filtration and a 7-stage precision filtration system for rinsing area filtration.

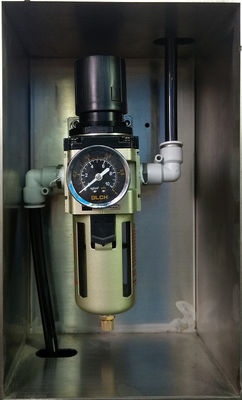

  6. What are the compressed air requirements?

    • Pressure: 4.5kg/cm²-7kg/cm²
    • Gas consumption: 800-1000L/Min
