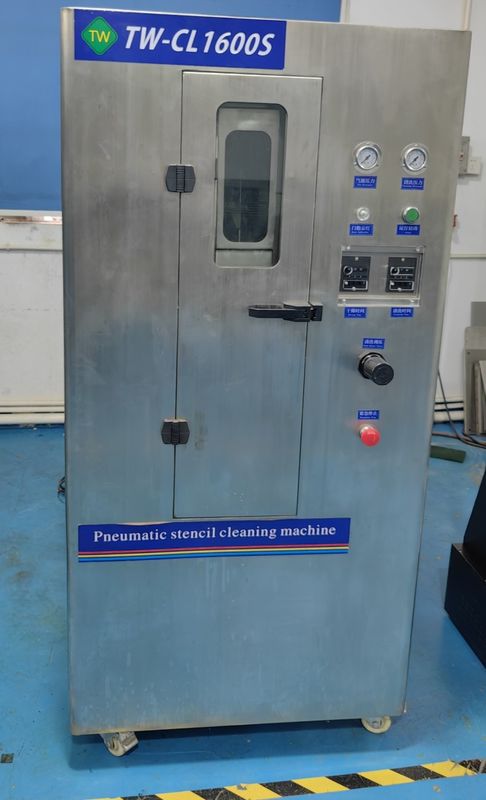

Pneumatic Stencil Cleaning Machine 42L Stainless Steel Material

   Stencil Cleaning Tool: Visualization, All-Stainless Steel, Pneumatic, High Density Nozzles, Low Liquid Consumption
  This equipment is suitable for cleaning various types of screen plates such as wire mesh, steel mesh, copper mesh, rubber mesh, microporous mesh, etc. The equipment uses pure compressed air to drive the diaphragm pump, allowing the cleaning solution to be recycled inside the machine, achieving zero discharge of the cleaning agent.

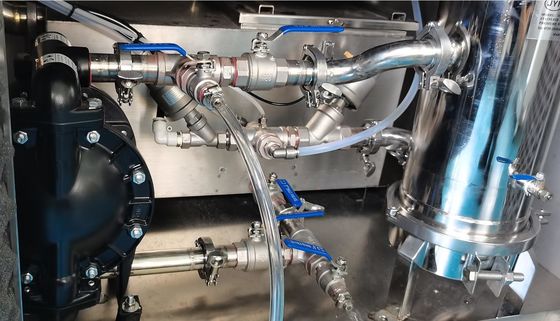

  The working principle of the equipment is to drive a pneumatic diaphragm pump with compressed air. After the cleaning liquid is pressurized by the diaphragm pump, it is sprayed onto the screen by the nozzle rotation. After cleaning is completed, it is blown dry with compressed air, ultimately achieving the effect of cleaning and drying the screen.
  The cleaning effect of the equipment is stable, efficient, and time-saving.

Equipment features:

1.Visualization of cleaning process；

2.All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in compliance with environmental requirements and standards；

3.Fully pneumatic operation, no electricity, no safety hazards such as fire, and has passed EU safety certification；

4.High density equal pressure dual side rotating cleaning nozzle: strong cleaning force without damaging the tension of the steel mesh;

5.Three stage filtration system and low exhaust duct design: solvent recycling, low liquid consumption;

6.System integration Global high-quality devices: ensure excellent quality, stable performance and long service life.

Working principle:

Feeding---Cleaning agent pressure filtration---High speed rotating spray---Compressed air rotary drying---blanking.

Comparison of cleaning effects:



Technical Parameter:


FAQ:

.

1. What is the power supply required for the equipment?

• This model does not require a power supply and uses a compressed air source.

2. What are the dimensions of the equipment?

• The equipment size is L950 X W800 X H1680 (mm).

3. Is the equipment environmentally friendly?

• Yes, the equipment is environmentally friendly, with low energy consumption, low operating noise, and no pollution. It also meets the ROHS and halogen-free requirements of the electronics industry.

4. What are the main features of the equipment?

• This equipment is suitable for the cleaning of various types of stencils such as silk screen, stencil, copper mesh, rubber mesh, microporous mesh and so on. The equipment adopts pure compressed air to drive the diaphragm pump, so that the cleaning liquid is circulated inside the machine, which can achieve zero emission of cleaning agent.

5. What industries can the product be used in?

• The product can be used for daily cleaning of highly reliable products in military, instrumentation, communication, industrial, and semiconductor industries.
