42L SMT Stencil Cleaner Machine Multifunctional Wear Resistant

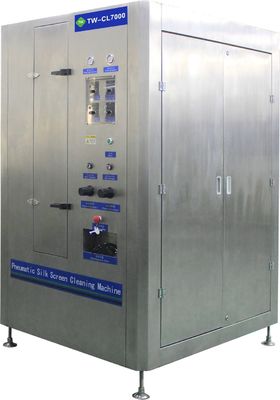

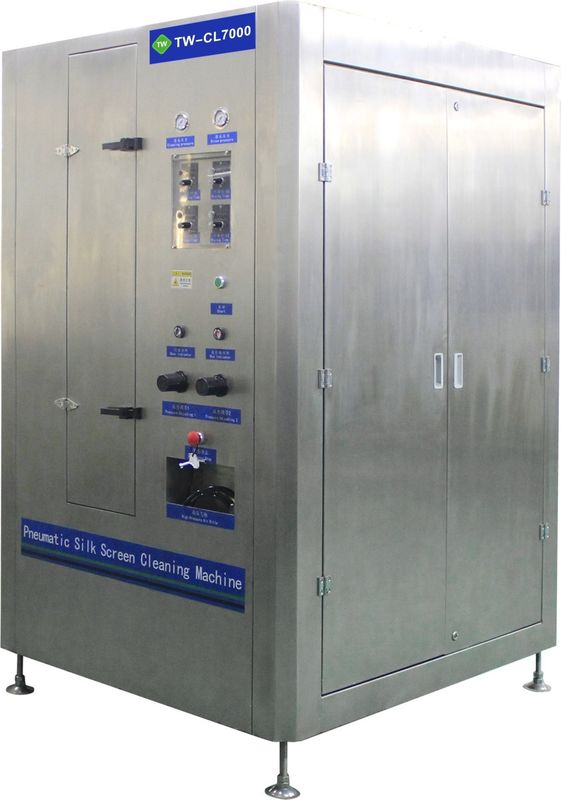

TW-CL7000 Screen printing cleaning machine and steel mesh cleaning machine and copper mesh cleaning machine

     This equipment is suitable for cleaning various types of screen plates such as large wire mesh, steel mesh, copper mesh, rubber mesh, and microporous mesh. The equipment uses pure compressed air to drive the diaphragm pump, allowing the cleaning solution to be recycled inside the machine, achieving zero discharge of the cleaning agent.
The working principle of the equipment is to drive a pneumatic diaphragm pump with compressed air. After the cleaning liquid is pressurized by the diaphragm pump, it is sprayed onto the screen by the nozzle rotation. After cleaning is completed, it is blown dry with compressed air, ultimately achieving the effect of cleaning and drying the screen.
The cleaning effect of the equipment is stable, safe and efficient, saving time and effort.

Characteristic:

1.All stainless steel body: beautiful, wear-resistant, corrosion-resistant, acidic, alkaline and other cleaning fluids. Comply with environmental requirements and standards;

2.The whole pneumatic operation,no electricity,no fire safety,has passed the European safety certification;

3.The special for cleaning printing ink,glue, paste etc;

4.The cleaning pressure is+rinse cleaning degree,liquid pressure through the pressure gauge display panel;

5.The cleaning pressure can be independently adjusted, suitable for any material mesh plate;

6.The cleaning surface is large, suitable for placing 47 * 47 inch mesh plates；

7.The unique design of S type air exhausting device the lower power consumption,liquid;

8.The equipment adopts a precision three-level 0.45um filtration system and solvent recycling;

9.The humanization design: one button operation and automatic drainage function,the operation is very simple;

10.The system integration of global quality devices: ensure excellent quality,stable performance,long service life;

11.The configuration of a despotic professional air gun, increase the humanization design of manual drying function; (Equipment highlights)

12.Configure two 80L solution cleaning tanks, which have removable filter screens for filtering ink for easy maintenance; (Equipment highlights)

Field of application:

 Suitable for cleaning various types of mesh plates such as wire mesh, adhesive mesh, microporous mesh, and crystal disc

Working principle:

1.Cleaning solution filtration and recycling；

2.The cleaning completion time for a mesh board is generally 5-10 minutes；

3.One click cleaning start→Pump boost start→Clean eighth level filtration→Spray flushing and filtration→

Pipeline liquid recovery→Enter Rinsing Start→Pump boost start→Rinsing and seven stage filtration→

Spray flushing screen board→Blow drying mesh board

Product parameters:
