| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-CL1800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Conference |
| Packaging Details: | Vacuum +plywood case package |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets/year |
| Equipment Size: | L1300×W1400×H1950 (mm) | Object Of Cleaning: | Stencils, Screens, Misprinted Boards, Etc. |
|---|---|---|---|
| Drying Time: | 0-99 Minutes Adjustable | Drying Method: | High-speed Hot Air Drying |
| Weight: | 550KG | Cleaning Time: | 0-99 Minutes Adjustable |
| Drying Temperature: | Ring Temperature ~100°C | Cleaning Temperature: | Ring Temperature ~75°C |
| Resistivity Meter Monitoring Range: | 0~18MΩ | Operating Mode: | Fully Automatic Cleaning At The Touch Of A Button |
| Wash Tank Capacity: | 80L | Spray Pressure: | 30PSI~90PSI (adjustable) |
| DI Water Supply: | Flow Rate: 5-15L/min ≦0.2Mpa | Air Supply: | 0.45Mpa ～0.7Mpa |
| Air Vent Size: | Φ102mm (discontinuous Exhaust) | Rating: | Three-phase Five-wire AC380V 50HZ 35KW |
| Highlight: | Multiscene Automatic Screen Cleaning Machine,Automatic Screen Cleaning Machine 35KW,Durable Cleaning Machine For Stencil |
||
Water-based screen cleaning machine is easy to operate and improves production efficiency and quality TW-CL1800

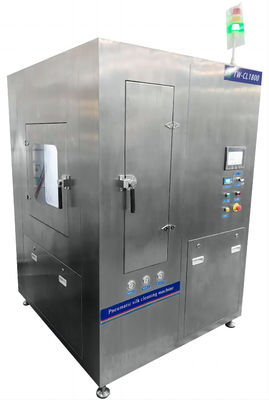

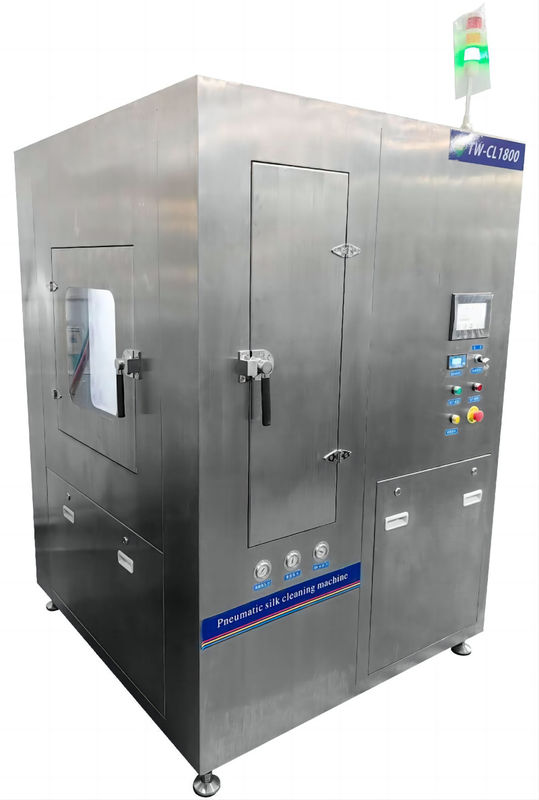

The TW-CL1800 is an all-stainless steel screen cleaner designed for SMT (Surface Mount Technology), PCB (Printed Circuit Board), and PCBA (Printed Circuit Board Assembly) applications. This fully automatic water-based cleaning machine utilizes advanced cleaning processes to achieve 100% cleanliness and environmental protection. It consists of a cleaning system, rinsing system, drying system, and filtration system. The machine operates using electricity and compressed air as energy sources, and it is equipped with a touch screen interface for easy parameter setting. With its compact structure and convenient operation, the TW-CL1800 improves production efficiency and quality.
1. One-key operation, realizing the whole process of washing, rinsing and drying.
2. Real-time pressure monitoring, upper and lower spray bar pressure can be adjusted separately.
3. Real-time filtering device: real-time filtering in the cleaning process before spraying;
4. Automatic liquid filling and draining function, which is more convenient for liquid filling and draining;
5. Super cleaning effect: can quickly and effectively clean the surface of the screen and hole wall residues;
6. Chamber lighting, the whole process at a glance;
7. Liquid tank temperature monitoring, real-time detection of whether the liquid needs to be heated;
8. Real-time DI water resistivity monitoring;
9. Touch control screen, easy and convenient operation.
| Parameters | Details |
|---|---|
| Drying time | 0-99 Minutes Adjustable |
| Rinsing time | 0-99 Minutes Adjustable |
| Equipment Size | L1300×W1400×H1950 (mm) |
| Cleaning time | 0-99 Minutes Adjustable |
| Operating mode | Fully Automatic Cleaning At The Touch Of A Button |
| Weight | 550KG |
| Cleaning temperature | Ring Temperature ~75°C |
| Cleaning method | Left And Right Mobile High-pressure Spraying |
| Resistivity meter monitoring range | 0~18MΩ |
| Wash tank capacity | 80L |
| Cleaning material | Water-based stencil cleaner |
The TW-CL1800 screen cleaner is suitable for use in various industries, including military, instrumentation, communication, industrial, and semiconductor industries. It is specifically designed for the daily cleaning of highly reliable products in these sectors.
We offer technical support and service for our Automatic Screen Cleaning Machine. Our technical support team is available 24/7 to answer any questions you may have about the product. We also offer a one-year warranty on the product, so you can be assured of its quality and performance. Our customer service team is also available to help with any issues you may have with the product. We strive to provide the best customer service possible and ensure that our customers are satisfied with their purchase.
What is the power supply required for the equipment?
The power supply required is Three Phase Five Wire AC380V 50HZ 35KW.
What are the dimensions of the equipment?
The equipment size is 1300mm(L)ｘ1400mm(W)ｘ1950mm(H).
Is the equipment environmentally friendly?
Yes, the equipment is environmentally friendly, with low energy consumption, low operating noise, and no pollution. It also complies with the ROHS and halogen-free requirements of the electronics industry.
What are the main features of the equipment?

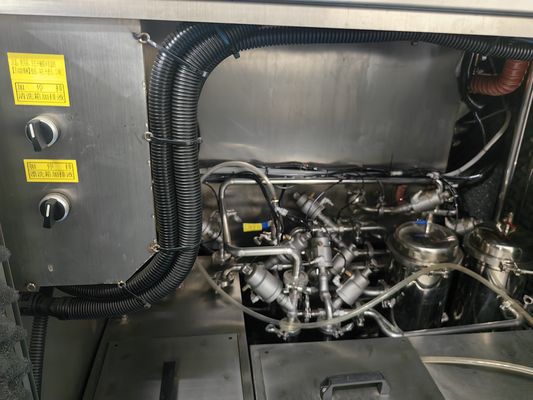

The main features of the equipment include fully automatic cleaning, rinsing, and drying processes, a real-time circulating filtration system for cleaning and rinsing liquids, low energy consumption, low operating noise, no pollution, and environmentally friendly operation. The equipment also incorporates electronic alarm monitoring meters for all air pressures, an anti-leakage tray, a leakage sensing device, and emergency stop switches.
What industries can the product be used in?
The product can be used for the daily cleaning of highly reliable products in the military, instrumentation, communication, industrial, and semiconductor industries.
