ISO Pneumatic Steel Mesh Cleaning Machine , Antiwear Solder Paste Cleaning Machine

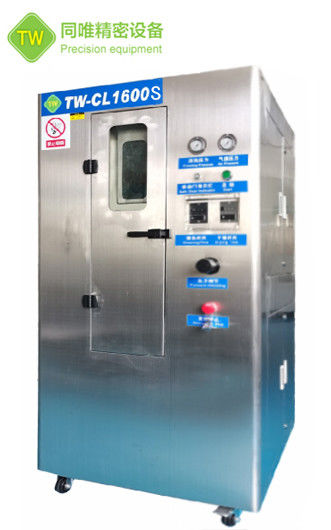

   TW-1600S Pneumatic steel mesh cleaning machine and solder paste cleaning machine

   This equipment is suitable for cleaning various types of screen plates such as wire mesh, steel mesh, copper mesh, rubber mesh, microporous mesh, etc. The equipment uses pure compressed air to drive the diaphragm pump, allowing the cleaning solution to be recycled inside the machine, achieving zero discharge of the cleaning agent.

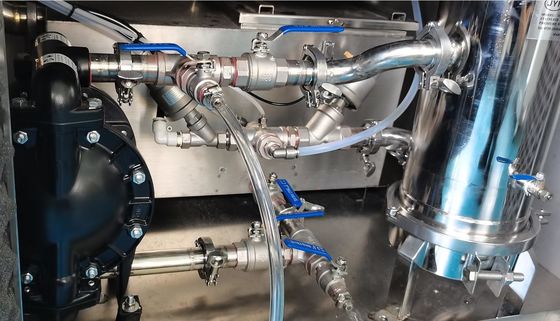

  The working principle of the equipment is to drive a pneumatic diaphragm pump with compressed air. After the cleaning liquid is pressurized by the diaphragm pump, it is sprayed onto the screen by the nozzle rotation. After cleaning is completed, it is blown dry with compressed air, ultimately achieving the effect of cleaning and drying the screen.

  The cleaning effect of the equipment is stable, efficient, and time-saving.

Equipment features:

1.Visualization of cleaning process；

2.All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in compliance with environmental requirements and standards；

3.Fully pneumatic operation, no electricity, no safety hazards such as fire, and has passed EU safety certification；

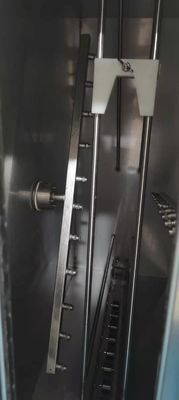

4.High density equal pressure dual side rotating cleaning nozzle: strong cleaning force without damaging the tension of the steel mesh;

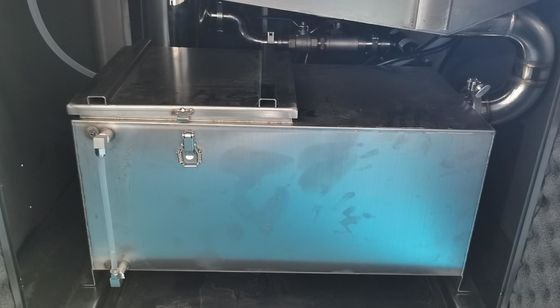

5.Three stage filtration system and low exhaust duct design: solvent recycling, low liquid consumption;

6.System integration Global high-quality devices: ensure excellent quality, stable performance and long service life.

Working principle:

Feeding---Cleaning agent pressure filtration---High speed rotating spray---Compressed air rotary drying---blanking.

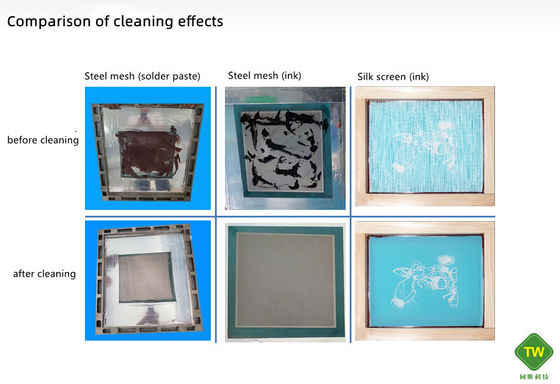

Comparison of cleaning effects:

Technical Parameter:
