| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-CL360 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Conference |
| Packaging Details: | Vacuum +plywood case package |
| Delivery Time: | 30-45 working days |
| Supply Ability: | 100 sets/year |
| Voltage: | 380V | Purge Pressure: | 0.3~0.6 Mpa |
|---|---|---|---|
| Material: | Stainless Steel | Cleaning Method: | Rotary Spray |
| Weight: | 300kg | Power: | 18 KW |
| Warranty: | 1 Year | Operation Mode: | Automatic |
| Highlight: | Stainless Steel Basket Washer,Basket Washer Anti Corrosion,380V Industrial Basket Clean Equipment |
||

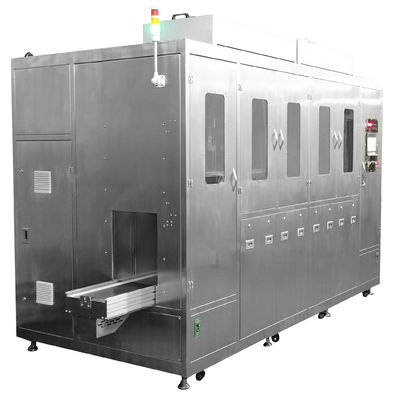

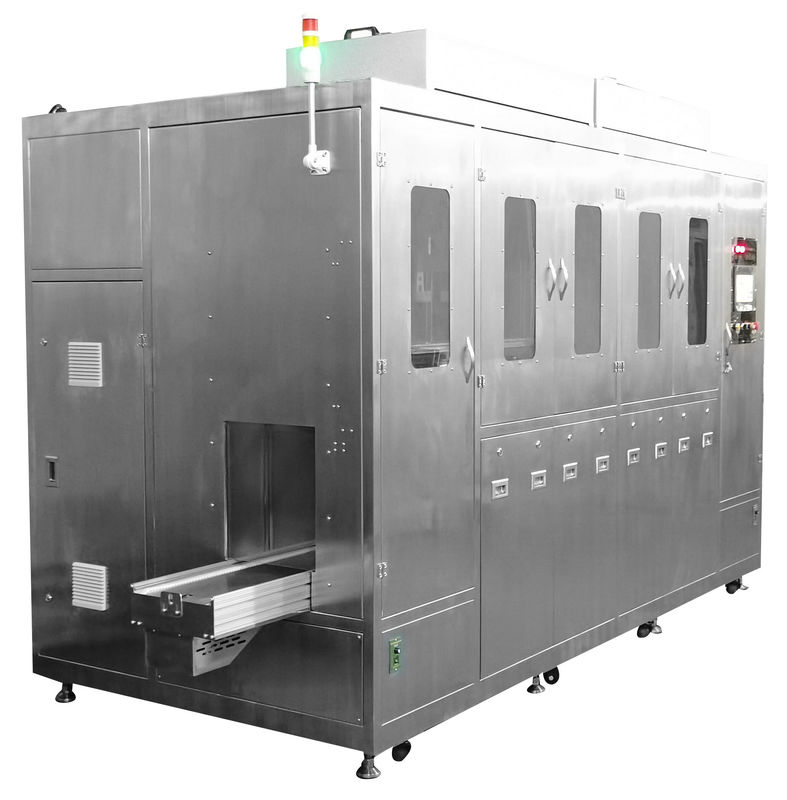

Pass-through rotary spray cleaner TW-CL360
The Semiconductor Cleaning Machine - Water Quality Monitoring, Heating & Cooling Devices is a high-performance cleaning machine specifically designed for cleaning semiconductor products. It utilizes a combination of rotating spray and multi-slot vibration rinsing functions to ensure thorough and effective cleaning. The machine is equipped with precision filtering devices in each cleaning section and features FFU (Fan Filter Unit) filters on the top to maintain overall cleanliness during operation.
| Cleaning Pressure:0.3~0.6Mpa | ||||||
| Cleaning Method: Rotating Spray | ||||||
| Rinsing Method: Soaking and Rinsing | ||||||
| Rinsing Oscillation Frequency: 1-10 Times/minute | ||||||
| Rotation Frequency: 1-10 Rpm | ||||||
| Internal Air Filtration: FFU | ||||||
| Water Quality Monitoring: Conductivity Meter | ||||||

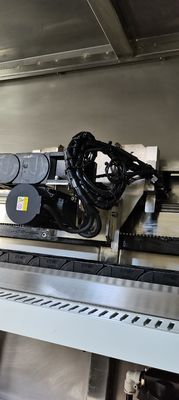

| Workpiece Movement Method: Robot Arm Grabbing and Moving | ||||||
| Water Temperature Control: Normal Temperature~40℃ ± 2℃ | ||||||
| Direction Of Movement: From Right To Left (front view) | ||||||
| Heating Device: 4KW/piece | ||||||
| Power Supply: 380V 50HZ | ||||||
| Cooling Device: Cooling Water Circulation | ||||||
| Power: 18KW (estimated Rated) | ||||||
| Filtering Device: 0.45μm Filterate | ||||||
| Overall Dimensions: L3500W1600H2000(mm) |
The Basket Cleaning Machine offers technical support and service for its customers. Our team of professionals are available to help answer any questions you may have about the product, provide troubleshooting advice, and provide on-site maintenance if necessary. Our technical support team is available 24/7 through phone, online chat, and email. We also offer a one-year warranty on the product, with free replacements and repairs if necessary.
We also provide on-site maintenance services for our customers. Our technicians are highly trained and certified to provide any necessary repairs or maintenance on the product. We can also provide regular maintenance to keep the product running efficiently and safely.
We are dedicated to providing quality service and support to our customers. If you have any questions or concerns, please don't hesitate to contact us.
The Basket Cleaning Machine should be packaged in a box with the following dimensions: Length: 23.5 cm; Width: 24.5 cm; Height: 26.5 cm.
The box should be protected by bubble wrap or packing peanuts before being sealed. The box should then be affixed with a shipping label to ensure that the package arrives at its intended destination.
The Basket Cleaning Machine should be shipped via a reliable and reputable courier service. The package should be tracked to ensure that it arrives at its destination safely.
How does the Semiconductor Cleaning Machine work?
The machine utilizes a combination of rotating spray and vibration rinsing functions to clean semiconductor products. The workpieces are transported by a mechanical arm to each section for cleaning, rinsing, and drying before being sent out. Precision filtering devices and FFU filters ensure cleanliness during the process.
What cleaning medium is used in the machine?
The machine can use DI water (Deionized water) or cleaning agents depending on the specific requirements of the cleaning process.
How long does the cleaning and rinsing process take?
The duration of the spray cleaning and vibration rinsing processes can vary depending on the specific requirements and the condition of the semiconductor products. Typically, it can range from 1 to 20 minutes.
Is the machine easy to operate?

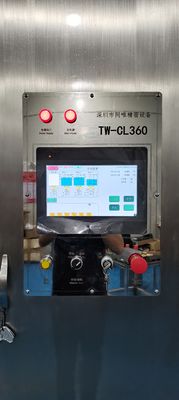

Yes, the equipment operation is simple. By pressing the start button, all processes are automatically completed by the machine according to the predetermined program.
What are the power requirements for the machine?
The machine requires a power supply of 380V 50HZ. The estimated rated power is 18KW.
Can the machine be customized to meet specific needs?
Yes, the machine can be customized according to specific requirements such as dimensions, cleaning parameters, and other specifications. It is advisable to communicate your detailed requirements with the manufacturer for customization options.
