1-10 rpm Automatic Basket Washer , Stable Industrial Basket Cleaner Equipment

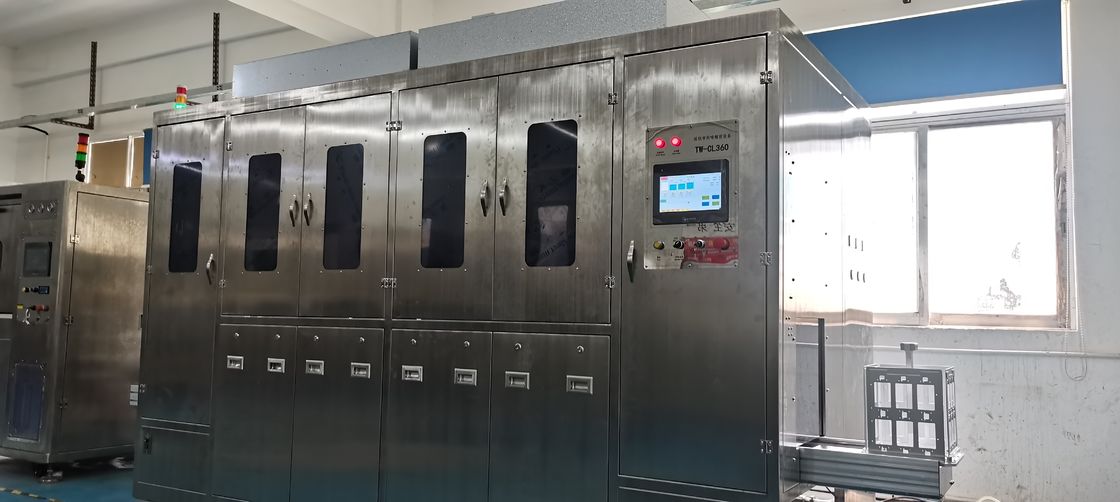

High-Performance Basket Cleaning Machine for Semiconductor Products TW-CL360

Product Description:
The High-Performance Basket Cleaning Machine is a specialized device designed for cleaning semiconductor products. It utilizes a unique combination of rotating spray and multi-slot vibration rinsing functions to ensure thorough and effective cleaning. This machine is equipped with precision filtering devices in each cleaning section, and FFU (Fan Filter Unit) filters are installed on the top of the machine to maintain overall cleanliness during operation.

Performance:

• Cleaning Pressure: 0.3~0.6Mpa
• Cleaning Method: Rotating Spray
• Rinsing Method: Soaking and Rinsing
• Rinsing Oscillation Frequency: 1-10 Times/minute
• Rotation Frequency: 1-10 Rpm
• Internal Air Filtration: FFU
• Water Quality Monitoring: Conductivity Meter
• Workpiece Movement Method: Robot Arm Grabbing and Moving
• Water Temperature Control: Normal Temperature~40℃ ± 2℃
• Direction Of Movement: From Right To Left (front view)
• Heating Device: 4KW/piece
• Power Supply: 380V 50HZ
• Cooling Device: Cooling Water Circulation
• Power: 18KW (estimated Rated)
• Filtering Device: 0.45μm Filterate
• Overall Dimensions: L3500W1600H2000(mm)

  ---



Application:
The High-Performance Basket Cleaning Machine is specifically designed for cleaning semiconductor products. It is suitable for removing contaminants, residues, and particles from semiconductor components, ensuring their cleanliness and functionality. This machine can be used in semiconductor manufacturing facilities, electronics assembly plants, and other related industries.

FAQ (Frequently Asked Questions):

1. How does the High-Performance Basket Cleaning Machine work?
   The machine utilizes a rotating spray and multi-slot vibration rinsing function to clean semiconductor products. The workpieces are transported by a mechanical arm to each section for cleaning, rinsing, and drying before being sent out. Precision filtering devices and FFU filters ensure cleanliness during the process.

2. What cleaning medium is used in the machine?
   The machine can use DI water (Deionized water) or cleaning agents depending on the specific requirements of the cleaning process.

3. How long does the cleaning and rinsing process take?
   The duration of the spray cleaning and vibration rinsing processes can vary depending on the specific requirements and the condition of the semiconductor products. Typically, it can range from 1 to 20 minutes.

4. Is the machine easy to operate?
   Yes, the equipment operation is simple. By pressing the start button, all processes are automatically completed by the machine according to the predetermined program.

5. What are the power requirements for the machine?
   The machine requires a power supply of 380V 50HZ. The estimated rated power is 18KW.

6. Can the machine be customized to meet specific needs?
   Yes, the machine can be customized according to specific requirements such as dimensions, cleaning parameters, and other specifications. It is advisable to communicate your detailed requirements with the manufacturer for customization options.

   ---



Service Support:
We provide comprehensive service support for the High-Performance Basket Cleaning Machine. Our dedicated team is available to assist you with any inquiries, technical support, or after-sales service. Please feel free to contact us for any assistance you may need.

Transportation:
The High-Performance Basket Cleaning Machine is securely packaged using plywood and vacuum packaging to ensure safe transportation. The delivery time is estimated to be 20-30 working days. We offer various payment terms including L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Our supply capacity is 200 sets per year, ensuring prompt delivery of your order.
