Industrial Automatic Screen Cleaning Machine Durable Multipurpose

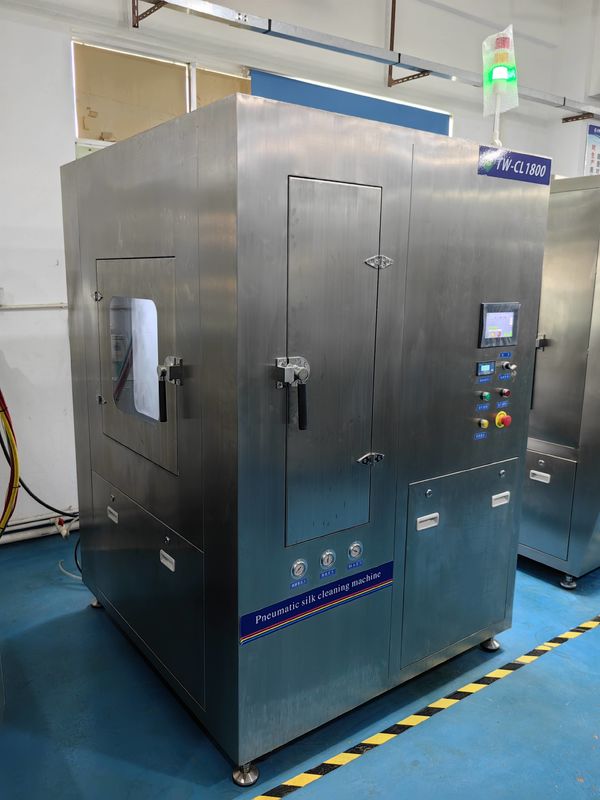

 TW-CL1800 Fully Automatic Water-Based Screen Cleaning Machine

Product Description:

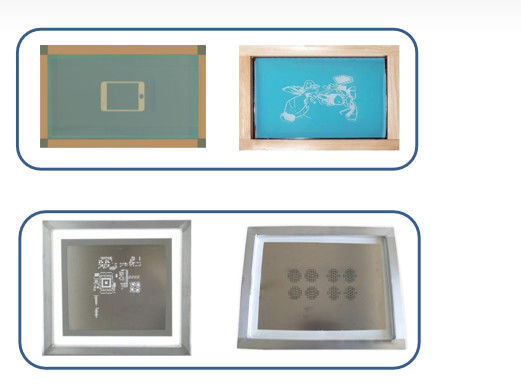

 The fully automatic water-based screen cleaning machine TW-CL1800 is mainly designed for cleaning SMT screens, PCB/PCBA boards, and misprinted boards in the electronics industry using water-based cleaning liquids. Using the most advanced cleaning process in the industry, achieving 100% cleanliness and environmental protection. The machine consists of a cleaning system, a rinsing system, a drying system, and a filtration system. The machine uses electricity and compressed air as energy sources to manually place the mesh plate in the cleaning room. After setting the cleaning, rinsing, drying, and other related parameters from the touch screen, press the start button, and the mesh plate will be automatically cleaned, rinsed, and dried. After the set cleaning process is completed, it will automatically stop running and reset to achieve the next workflow. This machine is very convenient for operators to operate, and the chief mate improves production efficiency and quality. It belongs to a new type of high-performance fully automatic cleaning equipment. The equipment uses water-based liquid cleaning agents and DI water for rinsing, with no safety hazards and no harm to personnel.

Characteristic:

All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in compliance with environmental requirements and standards;

Complete the entire cleaning process of cleaning, rinsing, and drying in one cleaning room, with a small volume and compact structure;

High density equal pressure bilateral symmetric complementary cleaning nozzle: strong cleaning force without damaging the tension of the steel mesh;

Four stage filtration system and low exhaust duct design: solvent recycling, low liquid consumption;

The cleaning room is equipped with a visual window, making the cleaning process clear at a glance

Used to monitor the cleaning effect, the resistivity can be set, and the resistivity control range is 0-18M Ω

Adopting a stable and reliable imported brand color touch screen, targeting: solvent temperature, cleaning time, rinsing frequency/time, rinsing temperature, drying time, drying temperature, conductivity monitoring parameters, etc;

Working principle:

In the manual-pump booster-spray cleaning-centralized 1mm filter recovery after cleaning 0.45um filtering and recovering-pump booster spray rinse- online 0.45um triple filter-wind drying,heating and drying-manual extraction

Features:

1. One-key operation, realizing the whole process of washing, rinsing and drying.
2. Real-time pressure monitoring, upper and lower spray bar pressure can be adjusted separately.
3. Real-time filtering device: real-time filtering in the cleaning process before spraying;

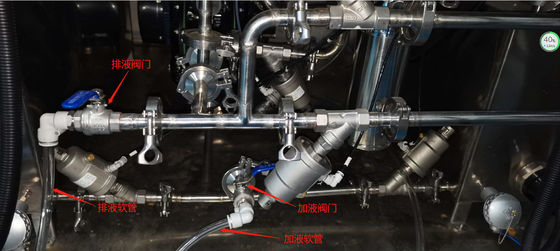

4. Automatic liquid filling and draining function, which is more convenient for liquid filling and draining;
5. Super cleaning effect: can quickly and effectively clean the surface of the screen and hole wall residues;
6. Chamber lighting, the whole process at a glance;
7. Liquid tank temperature monitoring, real-time detection of whether the liquid needs to be heated;
8. Real-time DI water resistivity monitoring;
9. Touch control screen, easy and convenient operation.
