Automatic Stencil Inspection Machine Multipurpose Anti Corrosion

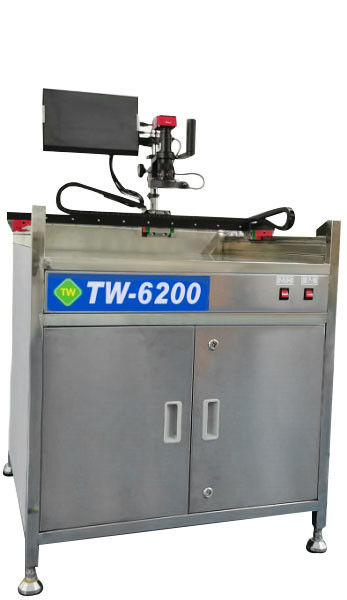

SMT automatic stencil inspection machine stencil cleaning and inspection machine CCD stencil inspection machineTW-6200

Specificities:

   TW-6200 stencil inspection table is an economical stencil inspection equipment, equipped with high-definition industrial camera, combined with plane shadowless light source system, the shooting image real-time transmission to the monitor for identification, reduce the difficulty of inspection, improve the accuracy and efficiency of inspection.

Detection range:

Maximum detection range 750mm * 750mm

Strong universality:

Suitable for testing steel mesh, wire mesh, and PCBA board

Easy to operate:

Manual real-time detection, simple and convenient

Machine composition:

Industrial camera and real-time display screen

An important component of the device, one responsible for imaging and the other responsible for real-time image display

Light source system:

The combination of top circular light source and bottom shadowless light source ensures clearer display of detection results

Structural components:

1. High precision guide rail and slider components for easier and smoother operation；

2. Mirror tempered glass countertop；

3. Stainless steel frame, resistant to rust, sturdy and durable；

4. The structural components are black anodized, which is overall beautiful and lightweight.

Operating instructions:

Preparation for startup

1. Confirm if the input voltage is correct

2. Confirm if the plug in the electrical box is secure

3. Confirm that the connection between the camera and display screen is correct

4. Startup and display screen debugging

Turn on the main power switch and display screen switch

5. Installation and use of the mouse

6. Display screen adjustment and usage

When the display screen is turned on and the mouse is connected, right-click to display the image shown in the following image on the right

Operating steps:

1. Turn on the power and press the [Power] button on the lower right side of the workbench

2. Place the steel mesh to be tested horizontally on the 【 Test Table 】

3. Adjust the brightness and lens focus of the top circular light.

4. Hold the armrest and control the direction of the XY axis to align the lens with each position to be detected.

5. Observe the real-time display screen for manual judgment

Precautions:

1. When installing the testing platform, it is necessary to adjust the level and fix the foot cup firmly

2. Do not place debris on the guide rail and workbench, and maintain it on schedule

3. The guide rail should be lubricated regularly

4. The machine should be grounded according to regulations

5. The lens and display screen are precision instruments, with slight movement control force
