| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-CL4000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Conference |
| Packaging Details: | Vacuum +plywood case package |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets/year |
| Cleaning Temperature: | Ring Temperature ~75°C | Working Ability: | Simultaneous Cleaning Of Multiple Jigs, Fixtures And Other Workpieces |
|---|---|---|---|
| Material: | Stainless Steel | Drying Method: | High-speed Hot Air Drying |
| Model: | Wave Soldering Fixture | Air Vent Size: | Φ120 |
| Cleaning Basket Specifications: | L670×W670×H280 (mm) | Object Of Cleaning: | Overcooking, Carrier Residual FLUX, Oil, Etc. |
| Highlight: | Integrated Wave Soldering Fixture Cleaning Equipment,Wave Soldering Fixture Cleaning Equipment Dustproof,Multiscene Wave Soldering Fixture Rinsing Equipment |
||
Fixture washing machine with high pressure rotary spray, integrating washing, rinsing and drying in a single machine

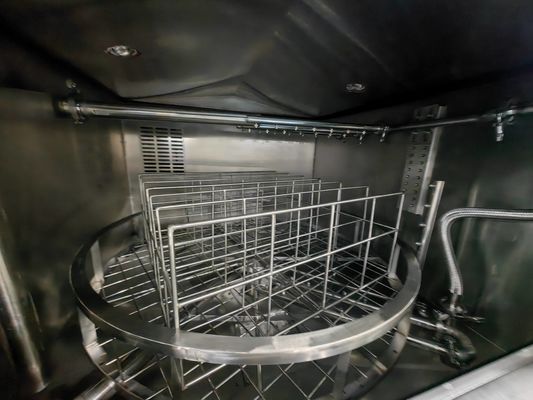

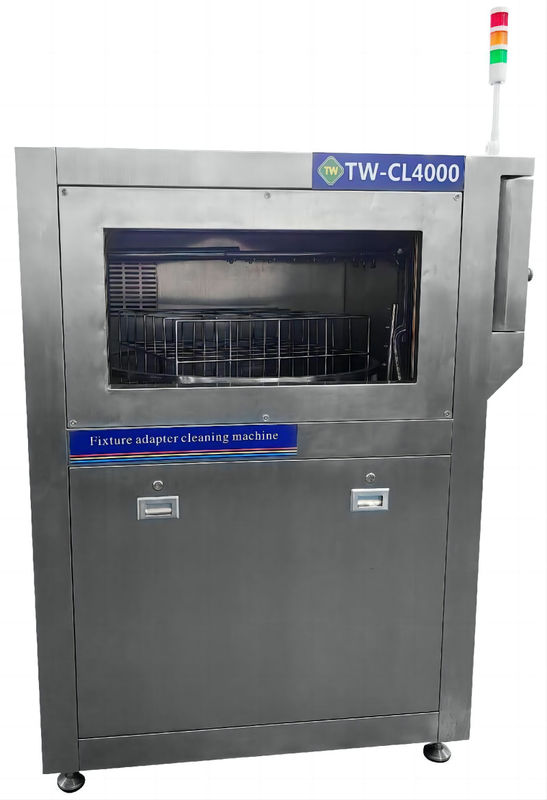

The Rotating Spray Fixture Cleaning Machine, model TW-CL4000, is a highly efficient cleaning equipment designed for various industrial applications. This machine features a 720-degree all-round spraying capability, ensuring thorough and effective cleaning. With its one-button operation, the entire cleaning, rinsing, drying, and wind cutting process is automatically completed without manual intervention. The cleaning room is equipped with a visual window and lighting bulbs, providing clear visibility during the cleaning process. After cleaning, the workpiece surface is left dry with high cleanliness. The spraying pressure is adjustable, and the 720-degree all-round spraying ensures that no dead corners are left untreated during the cleaning process. The equipment is equipped with a real-time circulating filtration system for cleaning and rinsing liquids, which greatly improves liquid utilization efficiency. It also features a pressure monitoring function in the filtration system, prompting for filter element replacement. The machine has low energy consumption, low operating noise, and no pollution, making it environmentally friendly.
| Parameter | Value |
|---|---|
| Object of cleaning | Overcooking, Carrier Residual FLUX, Oil, Etc. |
| Wash tank capacity | 80L |
| DI water supply | ≦0.2Mpa |
| Cleaning basket specifications | L670×W670×H280 (mm) |
| Air Pressure | 0.45Mpa ～0.7Mpa |
| Type | Cleaning Equipment |
| Warranty | 1 Year |
| Overall dimensions | L1350mmx1550mmx1650mm |
| Air Consumption | 10m³³/min |
| Drying method | High-speed Hot Air Drying |
The Rotating Spray Fixture Cleaning Machine is widely used in industries where thorough cleaning of workpieces is required. It is particularly effective in removing residual FLUX and oil stains from furnace treatment and vehicles. This machine can simultaneously clean multiple workpieces such as fixtures and fixtures, making it suitable for various manufacturing and industrial processes.
We provide technical support and service for our Wave Soldering Fixture Cleaning Equipment. Our experienced technical support team is available to answer any questions you may have about our products.
We provide technical advice on the installation, operation, maintenance and troubleshooting of our Wave Soldering Fixture Cleaning Equipment. We also provide detailed instructions on how to use the equipment and troubleshoot any problems you may encounter.
We offer a one-year warranty on all Wave Soldering Fixture Cleaning Equipment. We will repair or replace any defective parts free of charge within the warranty period.
We have a team of trained technicians available to provide on-site service if needed. We can also provide remote technical support via phone or email.
If you have any questions or concerns about our Wave Soldering Fixture Cleaning Equipment, please contact us. Our knowledgeable technical support team is here to help.
Q: What is the brand of this Rotating Spray Fixture Cleaning Machine?
A: The brand of this machine is TongWei.
Q: What is the model number of this Rotating Spray Fixture Cleaning Machine?
A: The model number of this machine is TW-CL4000.
Q: Where is this machine made?
A: This machine is made in Shenzhen, China.
Q: What is the cleaning method used by this machine?
A: This machine uses rotating high-pressure spray for cleaning.
Q: What is the power supply requirement for this machine?
A: This machine requires AC380V 50HZ power supply.
