| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-CL1700 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Conference |
| Packaging Details: | Vacuum +plywood case package |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/year |
| Machine Size: | 1420mm(L)ｘ1000mm(W)ｘ1720mm(H) | Equipment Name: | Fully Pneumatic Dual System Screen Cleaner |
|---|---|---|---|
| Air Supply: | 0.45Mpa~ 0.7Mpa | Cleaning Fluid Capacity: | 80L*2 |
| Cleaning Method: | 360° Rotary Cleaning Solution Spraying And High-pressure Air Blowing (cleaning → Drying) | Applicable Stencils: | Maximum: 750mm(L)x750mm(W)x45mm(H) |
| Operating Mode: | One-touch Automatic Cleaning, Two Plates Can Be Cleaned At The Same Time | Weight: | 600KG |
| Highlight: | Multiscene Stencil Cleaner Machine,Stencil Cleaner Machine Antiwear,Practical Stencil Cleaner Pneumatic |
||

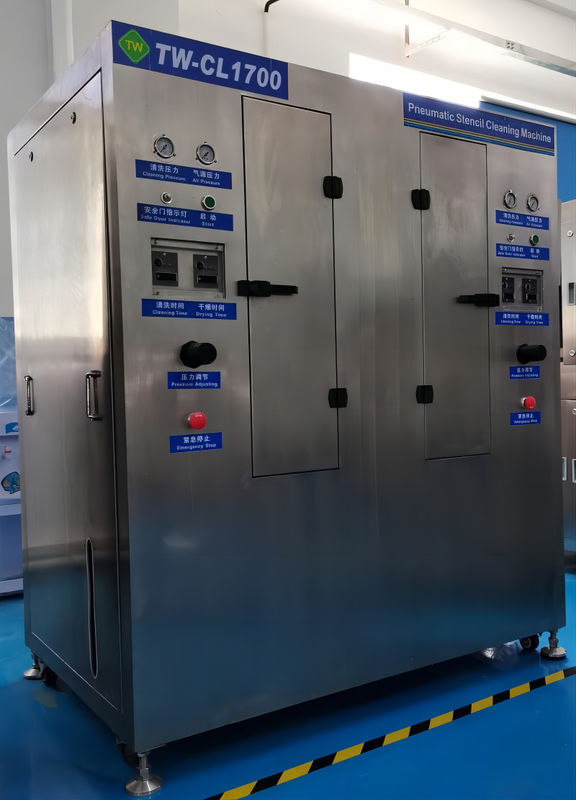

One-touch fully pneumatic cleaner for cleaning two stencils at the same time TW-CL1700
| Parameters | Specifications |
|---|---|
| Cleaning time | 0-999 seconds (adjustable) |
| Air supply | 0.45Mpa ~ 0.7Mpa |
| Cleaning method | 360° Rotary Cleaning Solution Spraying And High-pressure Air Blowing (cleaning → Drying) |
| Reservoir capacity | 80L*2 |
| Drying method | Compressed Air Drying |
| Applicable stencil size | Maximum750mm(L) × 750mm(W) × 40mm(H) Special Size On Request. |
| Weight | 600KG |
| Working ability | Maximum two pieces at a time: 750(L)X 750(W)X40(H) mm |
| Cleaning fluid capacity | 85L |
| Filtration | Circulation filtration of cleaning solution (0.45μm) |
| Drying method | Compressed air blow-drying |

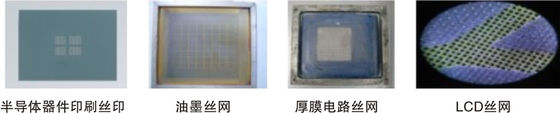

| Object of cleaning | Residues of solder paste, red glue, ink, etc. |
| Operating mode | one-touch start |
| Static (in a signal) | ＜70db |
| Exhaust port size | 1 exhaust port φ100mm x 30mm high |
Plate release→chemical cleaning→compressed air blow-drying→plate removal
Connected to the gas source, add the appropriate cleaning fluid in the liquid tank tank, long press the start button for 5 seconds the machine into automatic operation, pneumatic diaphragm pump began to work, the liquid through the diaphragm pump into the filter filtered rotating spray to the stencil, cleaning spray to the set time, the cleaning process is complete; and then into the blow-drying process, compressed air blowing off the stencil residue of the drug and recycled to the cleaning box until the set time So far, the whole workflow is completed.
Q1: What is the brand name of the Spray Cleaning Machine?
A1: The brand name of the Spray Cleaning Machine is TongWei.
Q2: What is the model number of the Spray Cleaning Machine?
A2: The model number of the Spray Cleaning Machine is TW-CL1700.
Q3: Where is the Spray Cleaning Machine manufactured?
A3: The Spray Cleaning Machine is manufactured in Shenzhen, China.
Q4: What features does the Spray Cleaning Machine have?
A4: The Spray Cleaning Machine has a host of features, such as adjustable nozzle, variable speed control, and a wide range of cleaning applications.
Q5: Is it easy to use the Spray Cleaning Machine?
A5: Yes, the Spray Cleaning Machine is easy to use and comes with a comprehensive instruction manual.
