| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-CL4000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Conference |
| Packaging Details: | Vacuum +plywood case package |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets/year |
| Air Consumption: | 10m³³/min | Warranty: | 1 Year |
|---|---|---|---|
| Air Vent Size: | Φ120 | Model: | Wave Soldering Fixture |
| Drying Method: | High-speed Hot Air Drying | Type: | Cleaning Equipment |
| DI Water Supply: | ≦0.2Mpa | Working Ability: | Simultaneous Cleaning Of Multiple Jigs, Fixtures And Other Workpieces |
| Cleaning Method: | Rotating High-pressure Spray | Wheel Diameter: | Φ1000mm |
| Cleaning Basket Specifications: | L670×W670×H280 (mm) | Filtering Method: | Liquid Circulation Filtration (0.45 μ M) |
| Cleaning Box Capacity: | 80L | Rinse Box Capacity: | 80L |
| Cleaning Temperature: | Environmental Temperature~75 ℃ | Drying Temperature: | Environmental Temperature~120 ℃ |
| Air Supply: | 0.45Mpa～0.7Mpa | Cleaning Objects: | Residual FLUX And Oil Stains From Furnace Treatment And Vehicles |
| Clean Time: | 0-9999 Seconds Adjustable | Rinsing Time: | 0-9999 Seconds Adjustable |
| Drying Time: | 0-9999 Seconds Adjustable | Add And Discharge Liquid: | Automatic Liquid Addition And Discharge |
| Noise: | Less Than 60 Decibels | Weight: | 550Kg |
| Rated Power: | AC380V 50HZ 32KW | ||
| Highlight: | 80L Wave Soldering Fixture Cleaning Equipment,32KW Wave Soldering Fixture Cleaning Equipment,Cleaning Equipment For Wave Soldering Fixture |
||

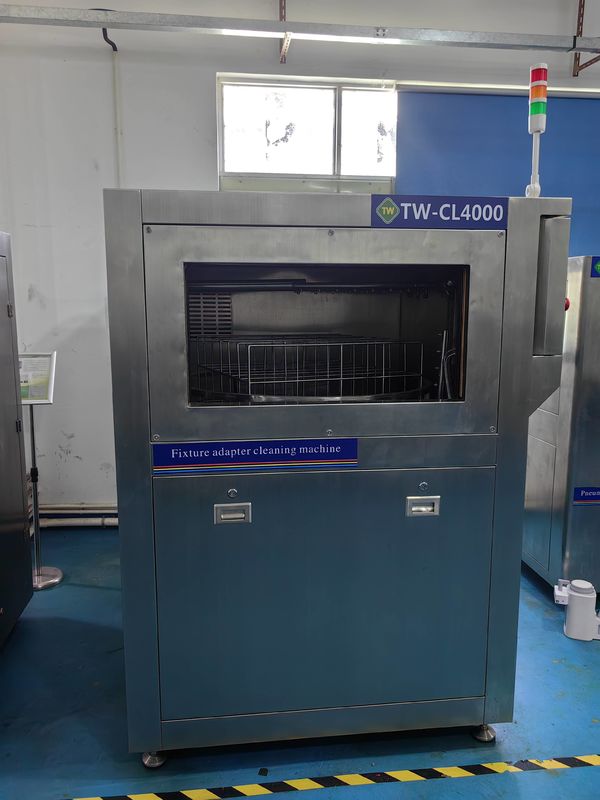

Cleaning Equipment for Wave Soldering Fixture 1 Year Warranty 10m³³/min Air Consumption TW-CL4000
The Wave Soldering Fixture Cleaning Equipment is an efficient and reliable cleaning solution for wave soldering fixtures. It features a DI water supply of up to 0.2Mpa, a rinse tank capacity of 80L, a warranty of 1 year, a drying temperature range of Ring Temperature to 120°C, and a weight of 550kg.
This Wave Soldering Fixture Cleaning Equipment provides superior cleaning performance, delivering consistent results with every cycle. It is designed to be energy efficient and has a simple user-friendly interface. Additionally, it features an advanced safety system, ensuring a safe and secure operating environment.
The Wave Soldering Fixture Cleaning Equipment is an ideal solution for all types of wave soldering fixtures, providing an efficient and reliable cleaning process. The equipment is easy to use and maintain, and it is capable of delivering consistent results in every cycle.
This Wave Soldering Fixture Cleaning Equipment is an excellent choice for those looking for a reliable and efficient cleaning solution for wave soldering fixtures. It is designed to last for years and is backed by a 1-year warranty. With its advanced safety system, it ensures a safe and secure operating environment.
one-button operation:
| Name | Parameter |
|---|---|
| Material | Stainless Steel |
| Cleaning temperature | Ring Temperature ~75°C |
| Weight | 550kg |
| Wash tank capacity | 80L |
| Frequency | AC380V 50HZ 32KW |
| Model | Wave Soldering Fixture |
| Drying temperature | Ring Temperature ~ 120°C |
| Object of cleaning | Overcooking, Carrier Residual FLUX, Oil, Etc. |
| Overall dimensions | L1350mmx1550mmx1650mm |
The Rotating Spray Fixture Cleaning Machine is widely used in industries where thorough cleaning of workpieces is required. It is particularly effective in removing residual FLUX and oil stains from furnace treatment and vehicles. This machine can simultaneously clean multiple workpieces such as fixtures and fixtures, making it suitable for various manufacturing and industrial processes.
We offer a wide range of technical support and service for our Wave Soldering Fixture Cleaning Equipment. Our team of experienced professionals can provide assistance with:
If you have any questions or require assistance with your Wave Soldering Fixture Cleaning Equipment, please contact us and one of our team will be happy to help.
