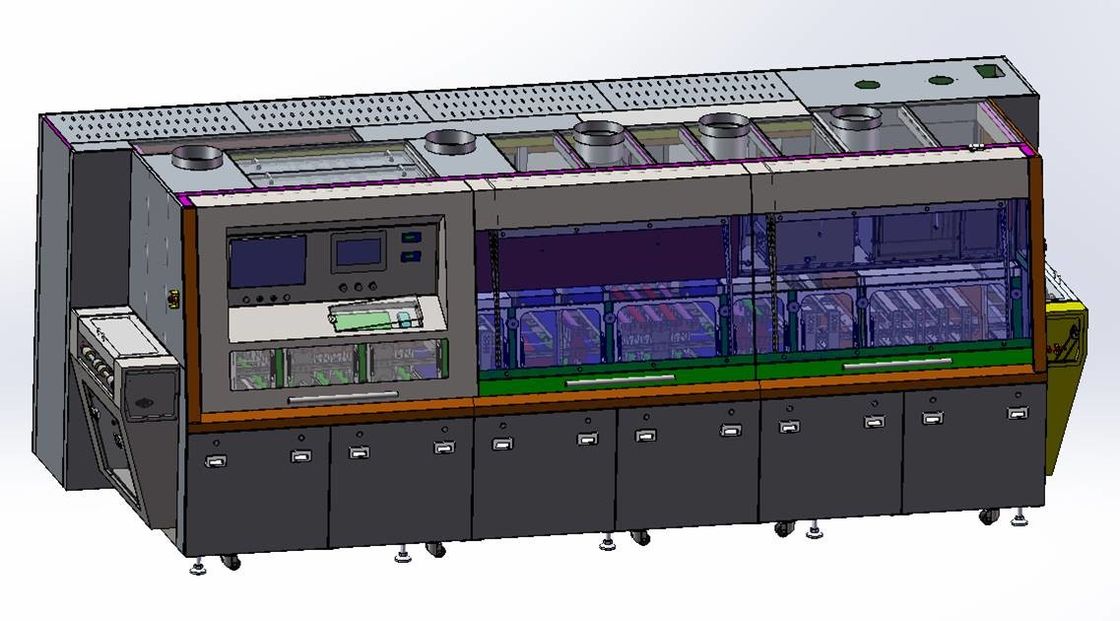

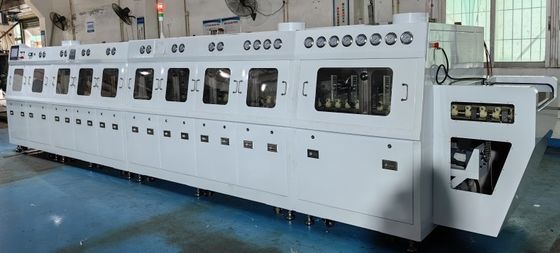

Three Phase Flux Cleaning Machine Durable , Multifunctional Component Washing Machine

Product Description:



The fully automatic online cleaning machine is suitable for cleaning residual flux in high capacity PCBA, semiconductor and other products. There are also multiple options and functions to meet users' requirements for optimizing processes and controlling costs. This product has been stably used for daily cleaning of highly reliable products in military, instrumentation, communication, industrial, and semiconductor industries. We possess core technology and have passed third-party certification, meeting the ROHS and halogen-free requirements of the electronics industry.

Features:

1.One click operation, the equipment has a fully automatic cleaning, rinsing, and drying process, without manual intervention, and automatically records the cleaning output;



2.The cleaning volume is large, which can save a lot of labor. The cleaning room is equipped with a visual window and a lighting lamp, making the cleaning process clear at a glance;



3.The equipment has a real-time circulating filtration system for cleaning and rinsing liquids, and the filtration system is equipped with pressure monitoring function, greatly improving the efficiency of liquid utilization and prompting for filter element replacement;



4.The equipment has low energy consumption, low operating noise, no pollution, and is environmentally friendly；



5.All air pressures are equipped with electronic alarm monitoring meters, which will automatically stop and alarm when the air pressure is not up to the standard;



6.Install an anti leakage tray at the bottom of the frame and install a leakage sensing device;



7.Emergency stop switches are set at the inlet and outlet ends respectively, so that in case of accidents during the production process, the power supply can be cut off in a timely manne.



Technical Parameters:

Equipment Size:	5000mm(L)ｘ1860mm(W)ｘ1950mm(H)
Conveying Method:	Stainless Steel Mesh Belt 600mm Wide
Power Supply:	Three Phase Five Wire AC380V 50HZ 310A
Noise:	＜75db
Cooling Water Consumption:	Cooling Water:100-140L/MIN ,Pressure: 0.2-0.3Mpa
Exhaust Air Volume:	Total Engine Displacement: 45m ³/ Min 5 Exhaust Ports φ 250mm
Height Of Conveying Surface:	900+ (50-20) Mm
Conveying Speed:	250px/min-3750px/min
Power:	Total Power 186KW, Average Operating Power 100KW
DI Water Consumption:	Flow Rate: 5-15L/MIN, Pressure: 0.2-0.3Mpa
Compressed Air Consumption:	Flow Rate: 3-5m ³/ H. Pressure: 0.45-0.7Mpa
Net Weight Of Equipment:	About 4000KG



Applications:

 The online cleaning machine is suitable for daily cleaning of highly reliable products in military, instrumentation, communication, industrial, and semiconductor industries.

Support and Services:

We provide technical support and services for the Steel mesh cleaning machine, including:

• 24/7 technical support
• Troubleshooting guidance
• Regular maintenance and repair services
• Online and telephone customer service
• Parts replacement services
• Software upgrades and updates



Packing and Shipping:

Steel mesh cleaning machine is packed and shipped in boxes that are wrapped in plastic material to protect it from rust and other external damage. The boxes are labeled with the product description, weight, dimensions, and other relevant information. The boxes are then placed on pallets and secured with shrink wrap. The pallets are then loaded onto either a truck or a cargo container for shipping.



FAQ:

.

1. What is the power supply required for the equipment?

• The power supply required is Three Phase Five Wire AC380V 50HZ 310A.

2. What are the dimensions of the equipment?

• The equipment size is 5000mm(L)ｘ1860mm(W)ｘ1950mm(H).

3. Is the equipment environmentally friendly?

• Yes, the equipment is environmentally friendly, with low energy consumption, low operating noise, and no pollution. It also meets the ROHS and halogen-free requirements of the electronics industry.

4. What are the main features of the equipment?

• The main features of the equipment include fully automatic cleaning, rinsing, and drying processes, real-time circulating filtration system for cleaning and rinsing liquids, low energy consumption, low operating noise, no pollution, and environmentally friendly operation. The equipment also has electronic alarm monitoring meters for all air pressures, anti-leakage tray, leakage sensing device, and emergency stop switches.

5. What industries can the product be used in?

• The product can be used for daily cleaning of highly reliable products in military, instrumentation, communication, industrial, and semiconductor industries.
