| Place of Origin: | Shenzhen, China |
| Brand Name: | TongWei |
| Certification: | CE |
| Model Number: | TW-MS175 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiations |
| Packaging Details: | Plywood+Vacuum package |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/year |
| External Dimensions: | L1750*W800*H1200MM±20mm | Total Weight: | 400KG |
|---|---|---|---|
| PCB Board Adjustable Width: | Max.50-300MM | PCB Board Adjustable Height: | 750±50MM |
| PCB Board Adjustable Speed: | 0-1800mm/Min | PCB Board Transportation Direction: | L→R |
| PCB Board Component Height Limit Max.: | 135mm | Coating Drum Size: | L310mm |
| Disk Brush Size: | φ300 | Adjustment Range Of Brush Height: | 0-20mm Adjustable |
| Number Of Cleaning Boxes: | Four | Applicable Cleaning Agent Type: | Environmental Cleaning Agents |
| Drying Method: | Forced Air Drying By Fan | Tank Capacity Max: | 20L |
| Cleaning Agent Flow Rate: | 50-1500ml/min | Whole Machine Control Mode: | PLC+buttons |
| Power Supply: | 2-phase 3-wire System | Total Power: | 0．9（KW） |
| Working Power: | 0.3KW | Transport Connection Height: | 750±20MM |
| Exhaust Air Volume Requirements: | 10M ³/ Min (channel) | Spindle Speed: | 0-500 Rpm (continuously Variable Transmission) |
| Working Voltage: | 220V 50HZ | Transmission Speed: | 0.05~1.8m/min (continuously Variable Speed) Feeding Speed |
| Highlight: | PLC PCB Cleaner Machine,Antiwear PCB Cleaner Machine,300W Circuit Board Cleaning Equipment |
||

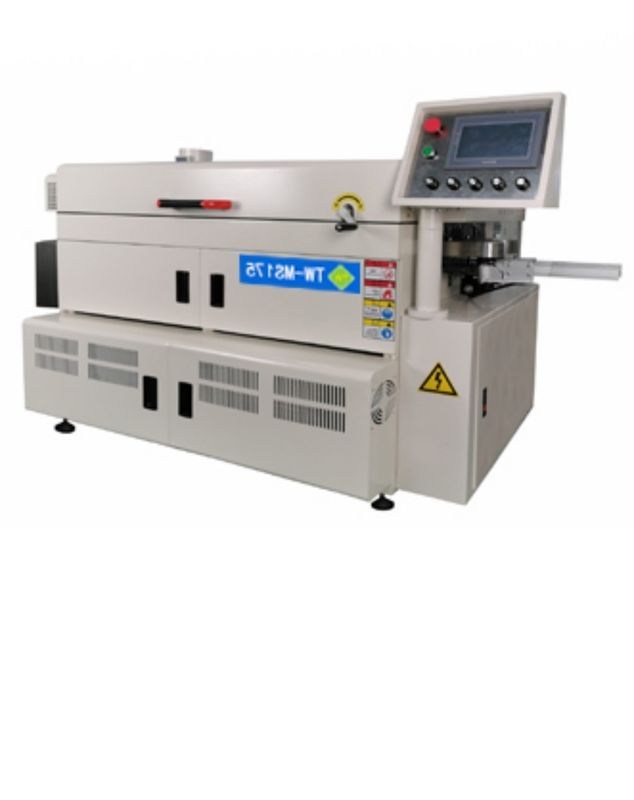

Online fully automatic PCBA board dedicated cleaning machine TW-MS175
Machine features:
1. This machine has a unique body structure and stable performance
2. Specially used for cleaning solder beads, flux marks, and scratch marks
3. Imported brown bristle brush, anti-static brush, will not harm PCB board
4. Suitable for PCB boards with edges (at least 1.5mm away), with a width of 10-300mm. The thickened spring claw ensures that the PCB board will not shift during transportation. Equipment appearance diagram
5. Automatic cleaning agent coating system: Ensure that the PCB welding surface can be evenly coated with cleaning water, without affecting the surface of other parts.
6. Disk brush and drum: Ensure that the PCB board is clean and in place in all directions without dead corners.
7. The height and speed (continuously variable) of the cleaning brush can be adjusted to meet different levels of cleaning needs.
8. The waste generated by work automatically accumulates in the filter box at the bottom of the machine for easy cleaning
9. Using 220V power supply. Easy to use
Contact Person: Mrs. WU
Tel: 13434737325
Fax: 86-0755-61583030
